Aspherical Lenses

Aspherical lenses are designed to have a much shorter focal length than is possible with regular spherical lenses. They are also corrected for spherical and coma aberrations. Ideally suited for low f-number and high throughput application, condenser quality aspheres are primarily used in high efficiency illumination systems.

Diameter	Dia. Tolerance	CT Tolerance	Centering	Surface Quality	Bevel
10.00-50.00	+0.00 / -0.50	±0.50	< 30 minutes	80-50	0.50 x 45°
Dimensions		MM
Clear Aperture		CA >= 90% of Diameter
Coating		Uncoated, Specify your coating (See Coating Chart for Available Options)
Design Wavelength		587.6nm
Focal Length Tolerance		±7%
Edge Thickness		Reference
* All dimensions are in mm

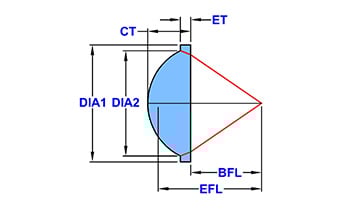

Part Number	Diameter	EFL	BFL	Spherical Radius	CT	ET
L-AGC081	24	18	11.2400	0.0000	10.4	1.5000	Add to Quote
L-AGC080	50	50	40.0700	0.0000	15	1.7000	Add to Quote
L-AGC070	68	58	42.6600	-400.0000	26.5	3.8000	Add to Quote
L-AGC065	60	50	38.0100	-105.7000	18.7	1.5000	Add to Quote
L-AGC060	55	38	25.0300	-124.2100	20.6	1.6000	Add to Quote
L-AGC055	52	36	20.7500	-257.0000	23.7	2.5000	Add to Quote
L-AGC050	50	36	20.2900	-160.0000	22.5	2.3000	Add to Quote
L-AGC045	40	27.3	17.2100	-110.6000	16.8	1.7000	Add to Quote
L-AGC041	27.6	21	15.7200	0.0000	8.3	1.2000	Add to Quote
L-AGC040	27.6	19.7	13.5100	-48.2600	10.92	1.9000	Add to Quote
L-AGC035	24.35	22.5	18.0300	-30.0000	9.3	1.4000	Add to Quote
L-AGC030	22	16.7	11.7300	-15.8000	12.4	3.2000	Add to Quote
L-AGC025	20	16	11.1400	-77.5000	8	1.8000	Add to Quote
L-AGC020	18.5	12	8.9300	-11.2500	8	1.5000	Add to Quote
L-AGC017	16	12.5	6.0100	0.0000	8	2.6000	Add to Quote
L-AGC015	16	10.8	6.0100	0.0000	8	2.6000	Add to Quote
L-AGC010	12	8.5	4.9600	-12.1800	5.9	1.6000	Add to Quote
L-AGC005	9	6.8	4.0700	-11.9000	5	1.4000	Add to Quote
